| Model | MW3575-T |
| Display | |
| Screen Size | 74.52 inches |
| Backlight | D-LED |
| Pixel Pitch | 0.429mm×0.429mm |
| Resolution | 3840×2160 |
| Brightness | 450 cd/m2 |
| Contrast | 1200:1 |
| Response Time | 8 ms |
| Color | 1.07B |
| Viewing Angle | Horizontal 178°, Vertical 178° |
| View Area | 1649.66 (W) x 927.94 (H) |
| Android System | |
| CPU Architecture | ARM A73+A53 |
| CPU Working Frequency | 1.5GHz |
| CPU Core | Quad Core |
| RAM | 3GB DDR4 |
| ROM | 16GB |
| OS | Android 8.0 |
| Touch | |
| Sensing Type | Infrared Touch Frame |
| Touch Accuracy | ±1mm |
| Surface Protection | 4mm Toughened Glass |
| Response Time | ≤10ms |
| Theory Clicks | Unlimited |
| Minimum Touch Object | ≥2mm |
| Interface | |
| Input Interface | HDMI ×3、DP ×1、VGA ×1、LAN ×2、PC-AUDIO IN ×1、YPBPR ×1、AV ×1、 TOUCH-USB ×2、OPS ×1、Android USB×2、Public USB×2、 |
| Output Interface | HDMI×1、AV×1、S/PDIF×1、AUDID OUT×1 |
| Control Interface | RS232-IN×1 |
| Speaker | |
| Speaker | 2×15W |
| OSD | |
| Multi- Language | 22 (English, Turkish,Danish,Norwegian-Bokmol,Romanian,Greek,Arabic,France, Spanish, Portuguese, German, Italian, Dutch, Swedish, Finnish, Polish, Czech, Russia, Korea, Simplified Chinese, Traditional Chinese, Japanese ) |
| VESA | |
| VESA | 4-M8 Screw Hole 600mmx400mm |
| General | |
| Power Supply | 100 to 240 V AC |
| Consumption | ≤400 W(on without OPS) ＜0.5 W(Standby) |
| Operation Temperature | 0°C ~ 40 °C |
| Operating Humidity | 20%~80% (No Condensation) |
| Storage Temperature | -10～60℃ |
| Storage Humidity | 10%～80%(No Condensation) |
| Product Size（mm） | 1735.98（W）×1034.52（H）×103.75（D） |
| Packing Size（mm） | 1880（W）×1160（H）×280（D） |
| Weight | Net Weight:58Kg Gross Weight:75Kg |
| Accessory | |
| Standard | Remote Control×1,Power Cable×1, HDMI Cable×1, USB A-B Cable×1, Touch Pen×2, Qualified Certificate Lable×1, User Manual×1, Quick Guide×1, Warranty Card×1, Wall Mount×1, USB WiFi Adapter×1 |

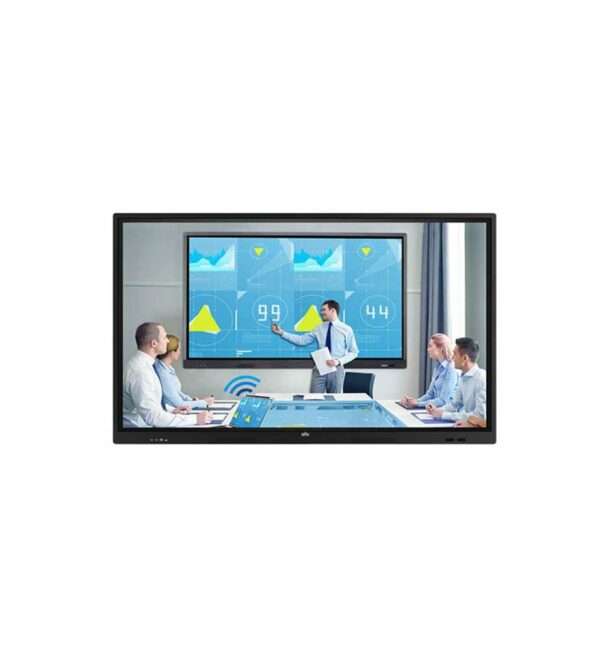

Uniview 75″ 4K Interactive Panel MW3575-T
€3,999.00
* 75″ ultra-HD display
* Metal housing, 4mm AG anti-glare tempered glass, and ultra-thin and ultra-narrow appearance
* IR (Infrared Ray) touch technology, supports 20 points writing.
* Writing height below 2mm to bring smoother writing experience
* All-channel annotating, built-in Android writing software
* Smart sidebar menu
* Wireless screen sharing, convenient to presentation
* Built-in Android system and optional with Pluggable PC Module
* Double LAN bridging, supporting Android, Pluggable PC Module (Windows system) and external PC realize network bridging
* Public USB port auto switch
* Antenna hidden inside
* All channel can be loop-outed by HDMI
Brand:
Uniview
